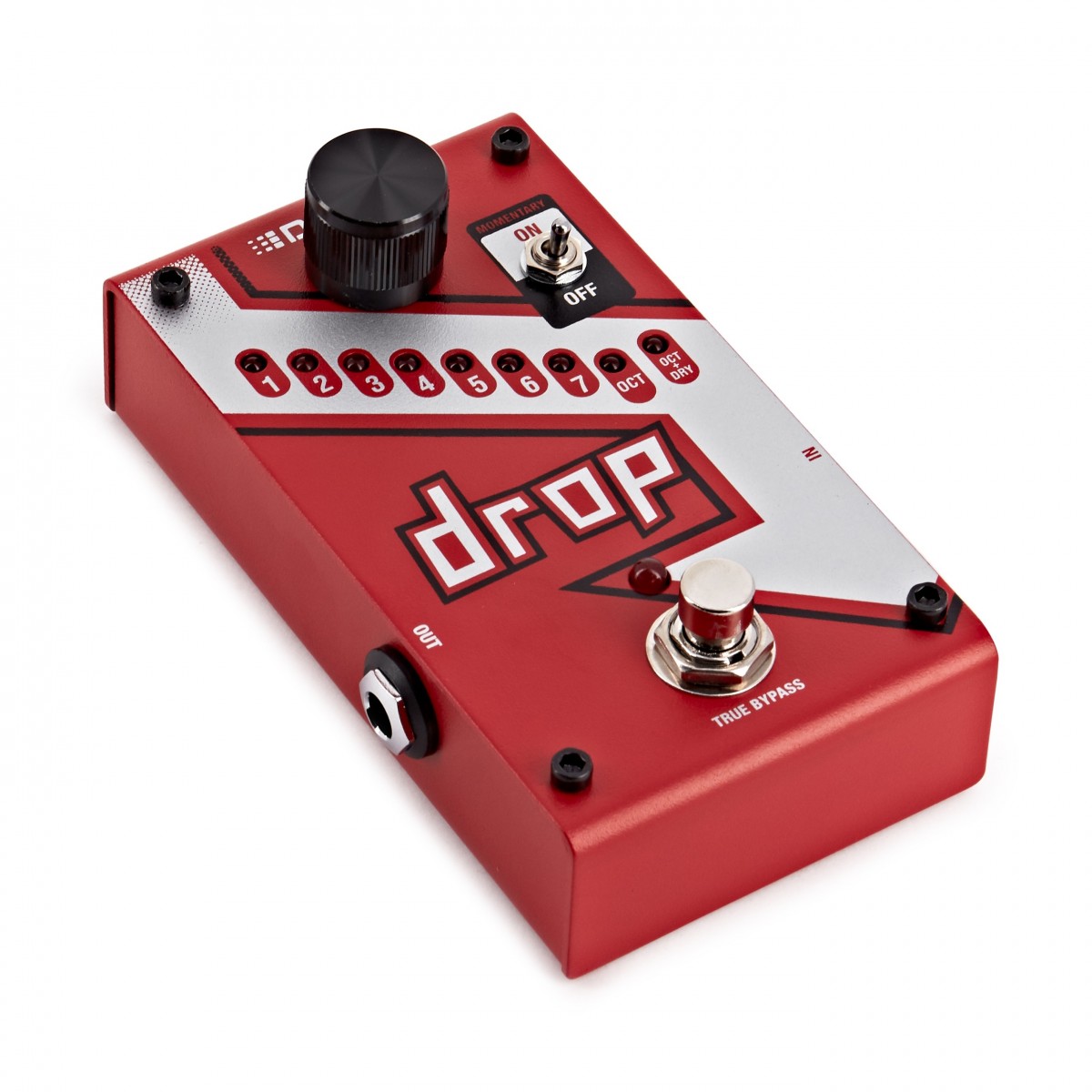

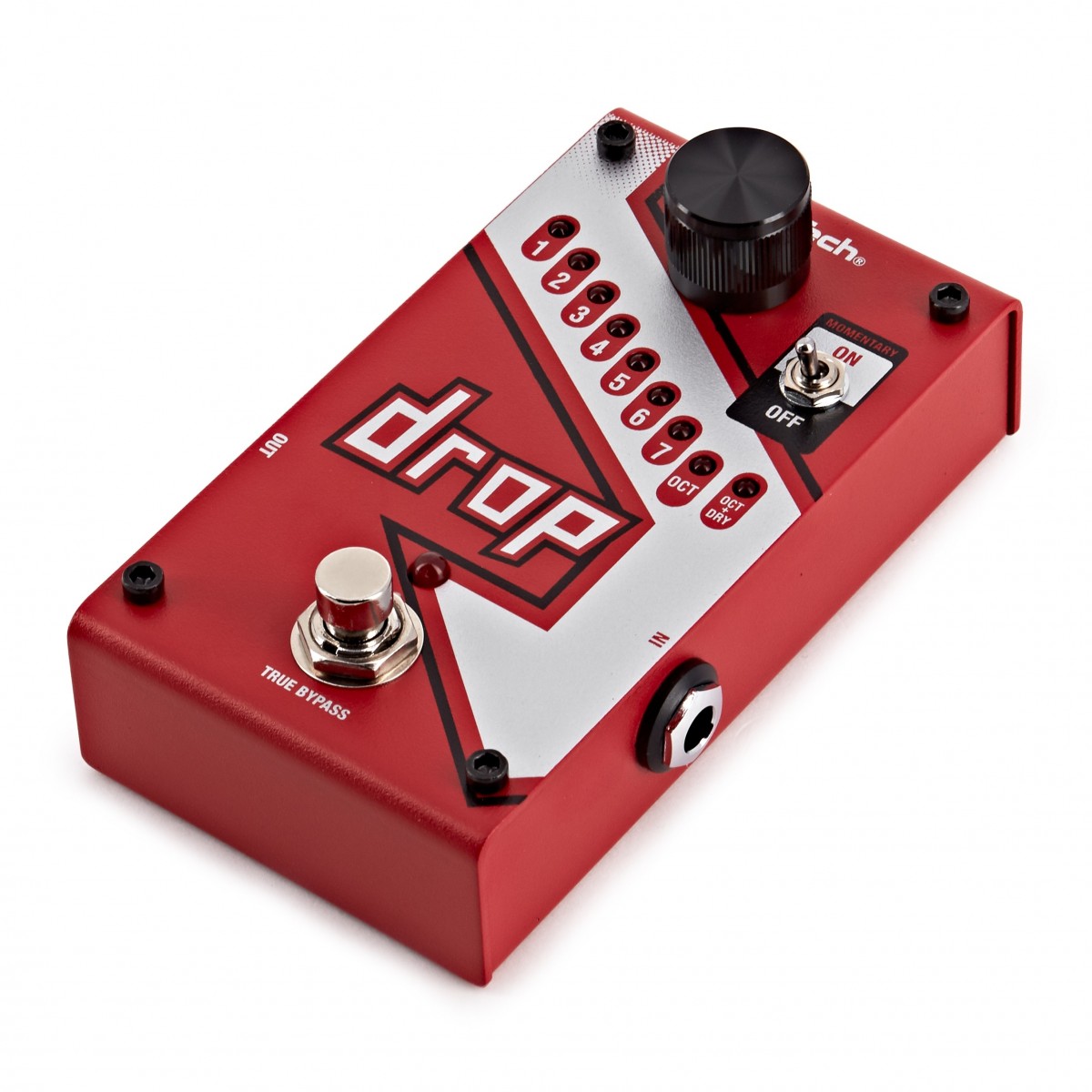

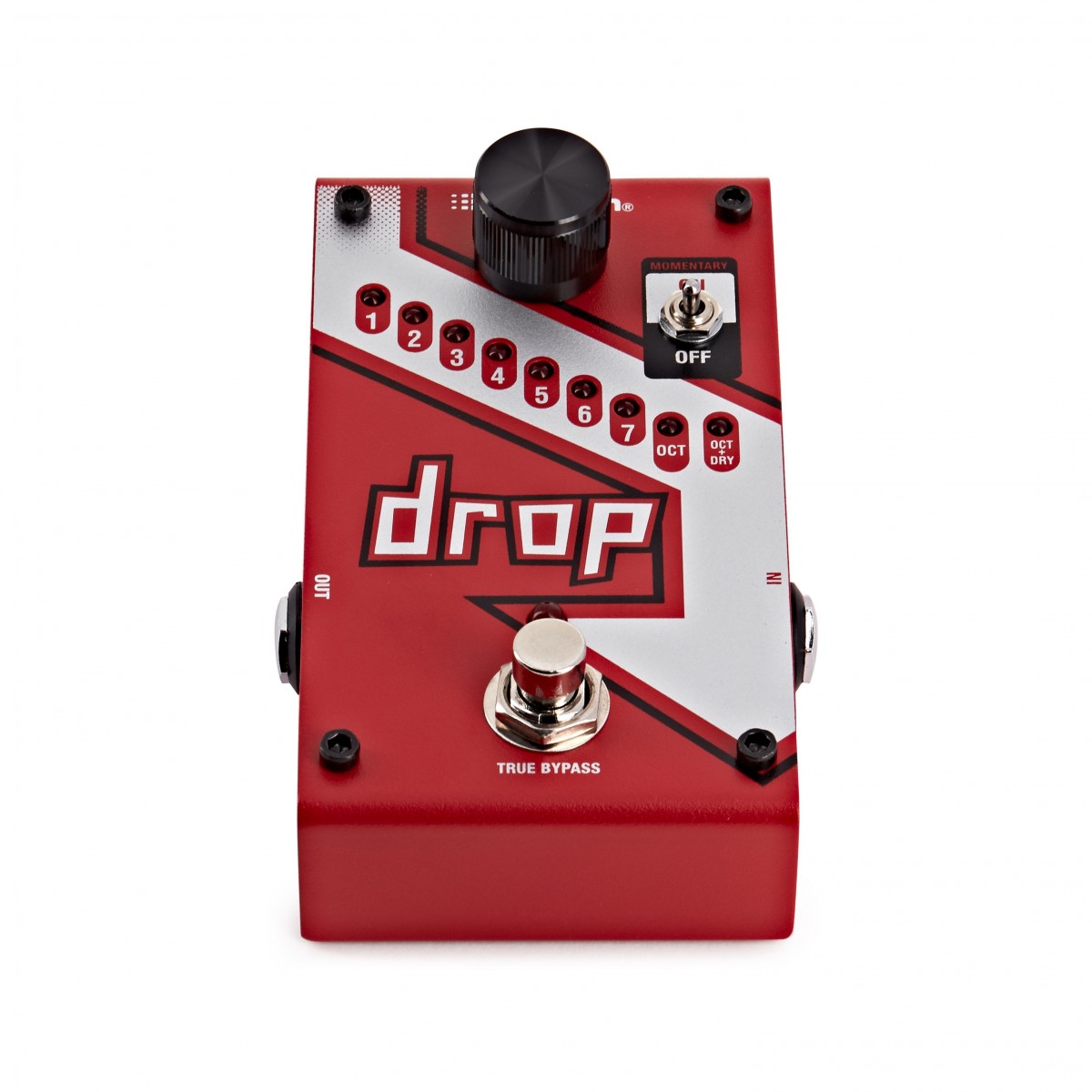

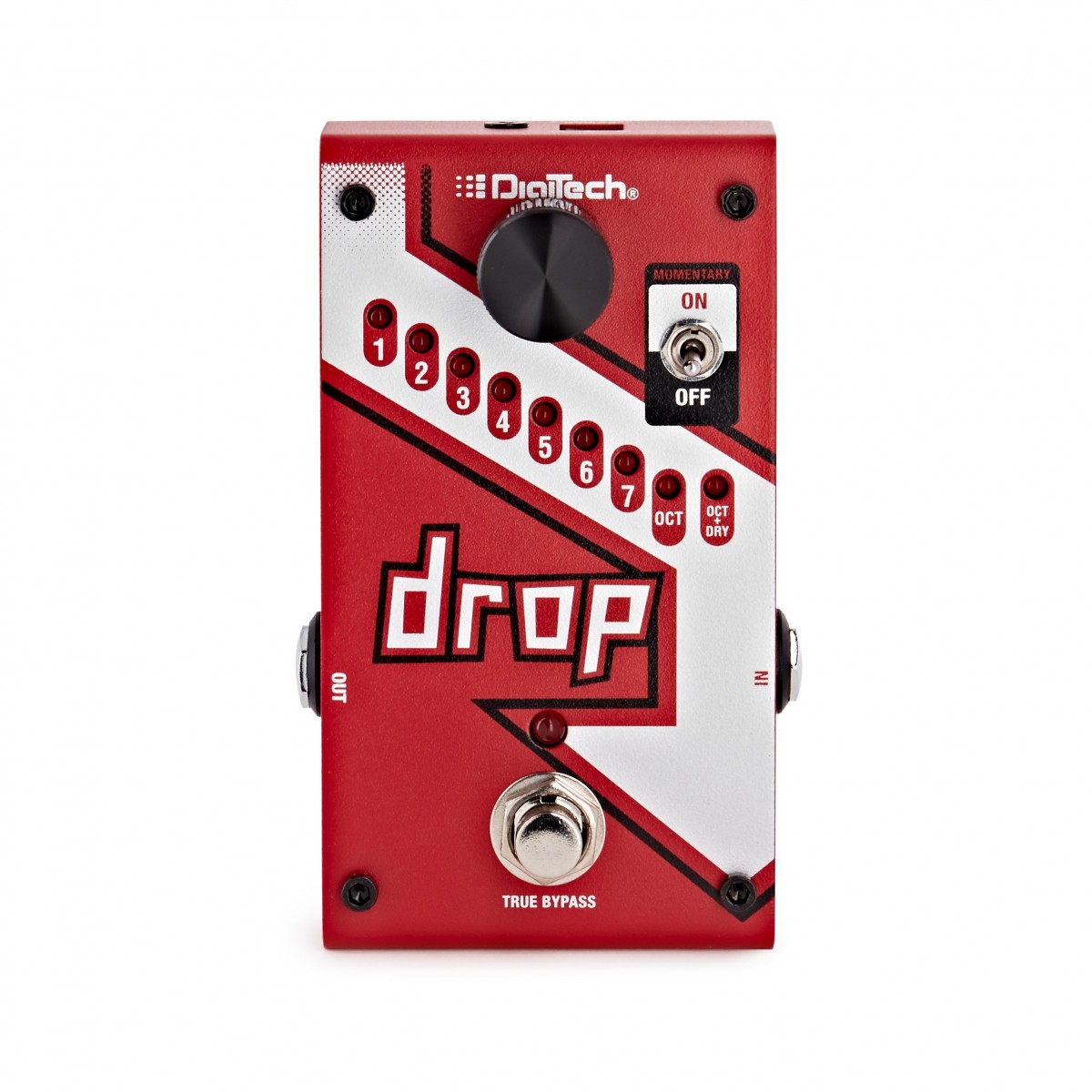

The DigiTech® Drop is a dedicated polyphonic drop tune pedal that allows you to drop your tuning from one semitone all the way down to a full octave. Get down-tuned chunk without having to change guitars! The Drop also features a momentary/latching switch. With the switch set to momentary, you can turn the Drop into a true performance pedal. Fast trills and roller-coaster pitch dips are at the tip of your toes.
Controls
EFFECT SELECTOR KNOB- Selects which of the Drop effect settings is used when the effect is active.
MOMENTARY ON/OFF SWITCH – Selects how the effect footswitch will operate. Setting this switch to “ON” will cause the footswitch to act as a momentary switch (the effect will be enabled or disabled only as long as the footswitch is pressed and held). Setting this switch to “OFF” will cause the footswitch to act as a standard latching on/off switch.
Drop Effects Settings
Setting 1 – Transposes guitar signal down 1 semitone
Setting 2 – Transposes guitar signal down 2 semitones
Setting 3 – Transposes guitar signal down 3 semitones
Setting 4 – Transposes guitar signal down 4 semitones
Setting 5 – Transposes guitar signal down 5 semitones
Setting 6 – Transposes guitar signal down 6 semitones.
Setting 7 – Transposes guitar signal down 7 semitones
Setting OCT – Transposes guitar signal down 1 octave.
Setting OCT + DRY – Transposes guitar signal down 1 octave and adds dry signal
Note: A semitone is the smallest interval used in classical Western music, equal to a twelfth of an octave or half a tone; a half step.
Included Items:
DigiTech Drop Polyphonic Drop Tune Pedal
PS0913DC Power Supply
